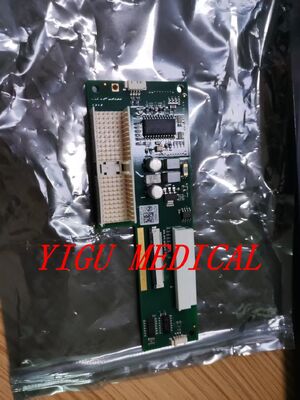

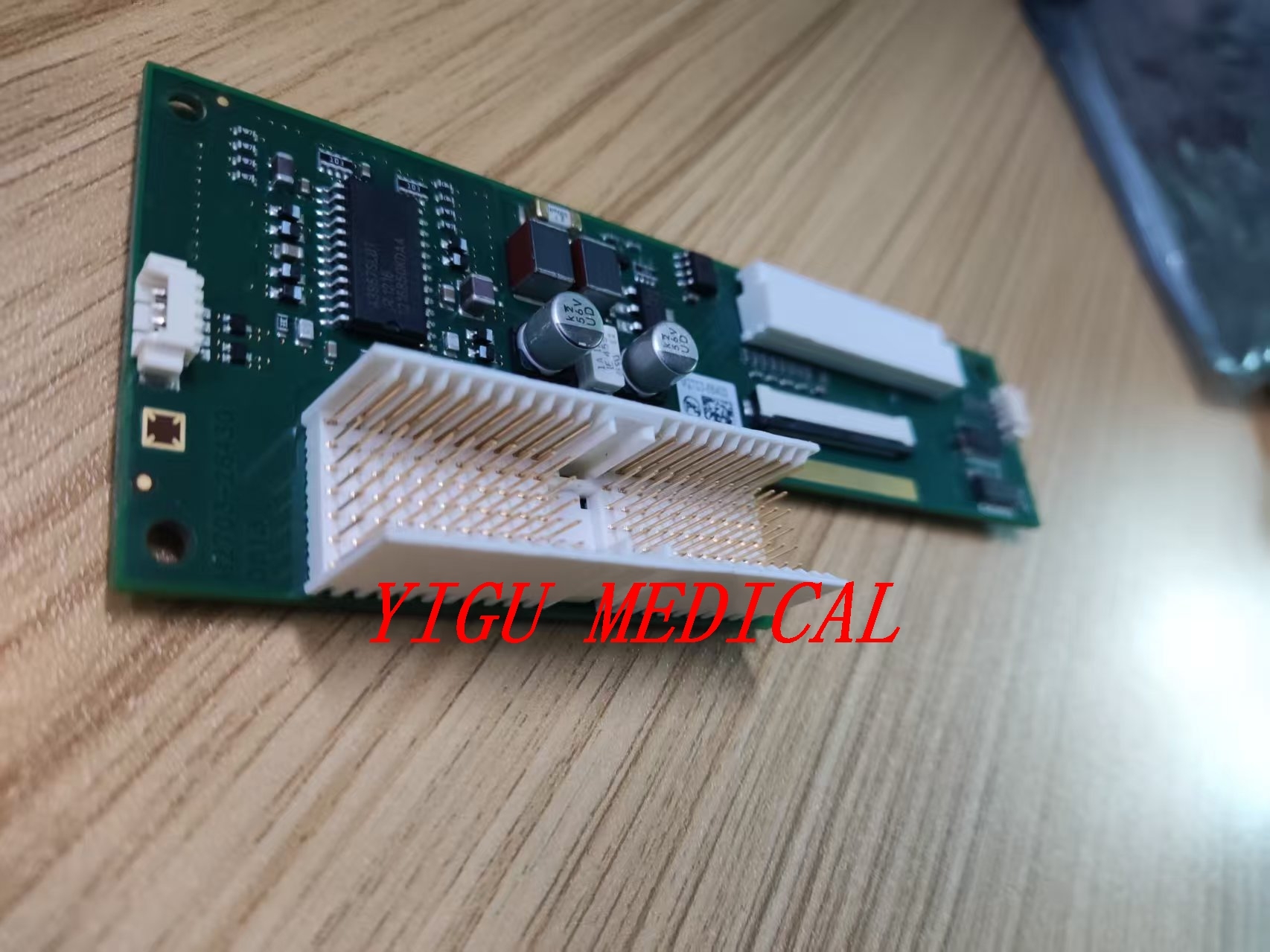

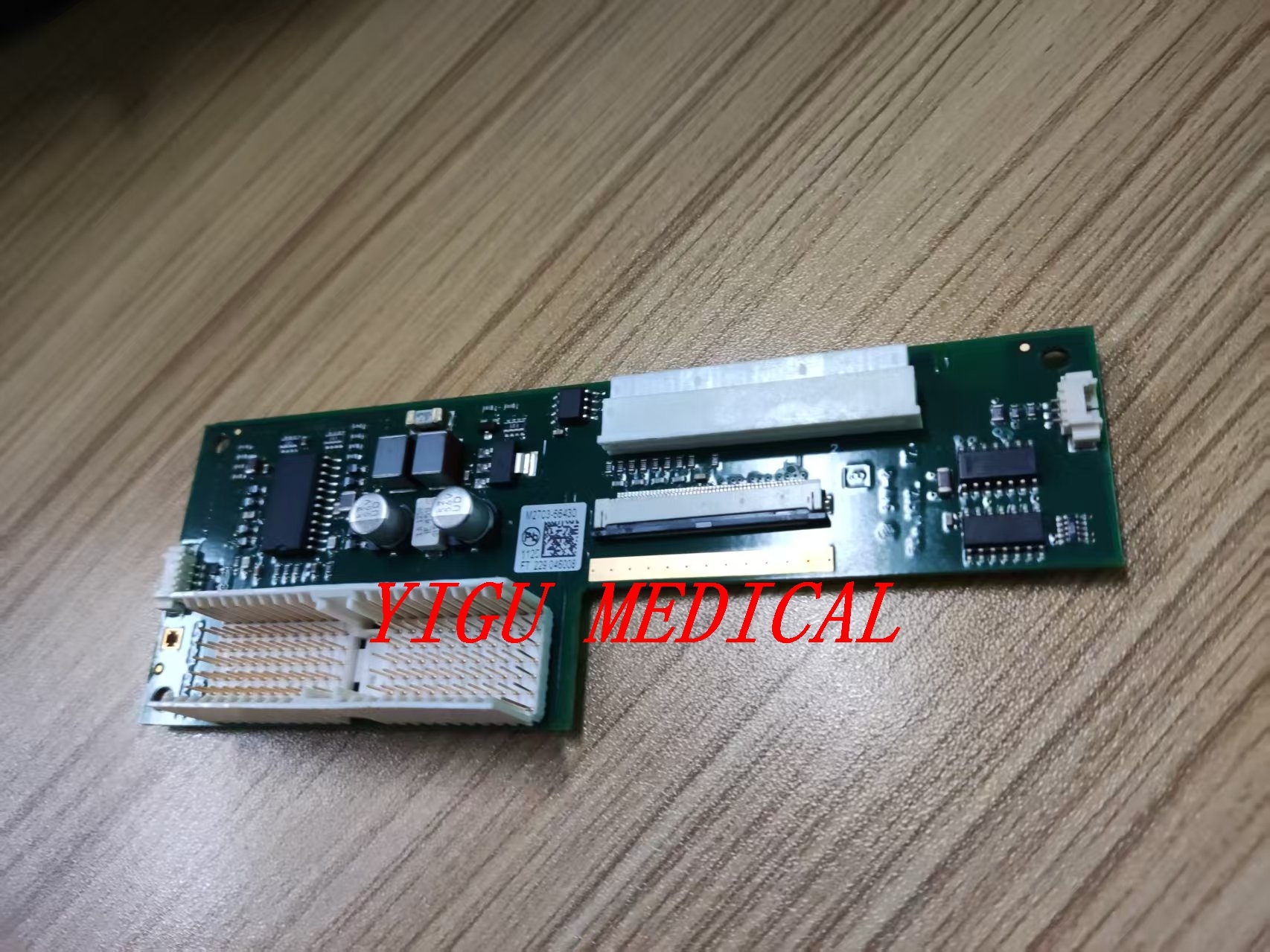

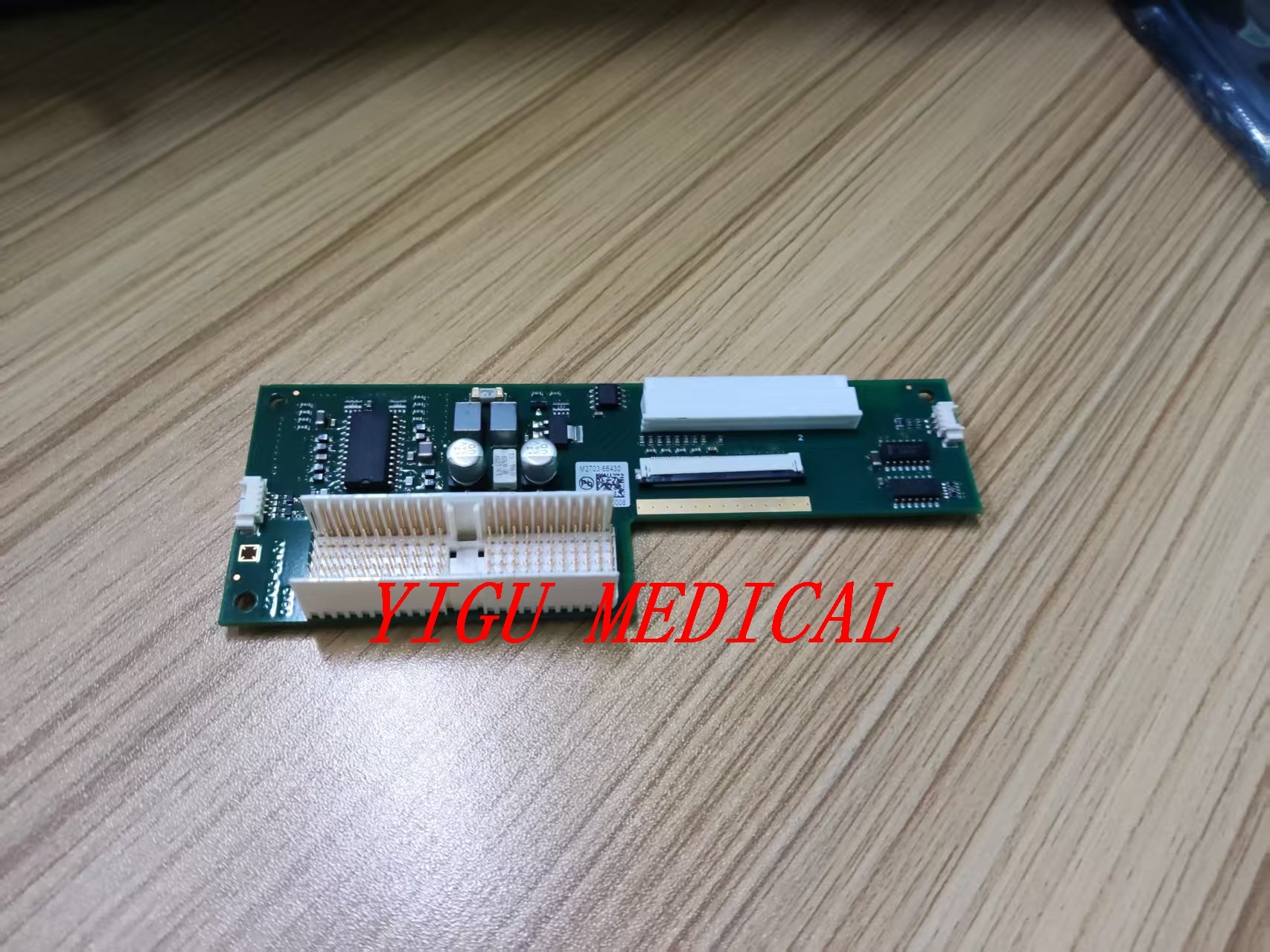

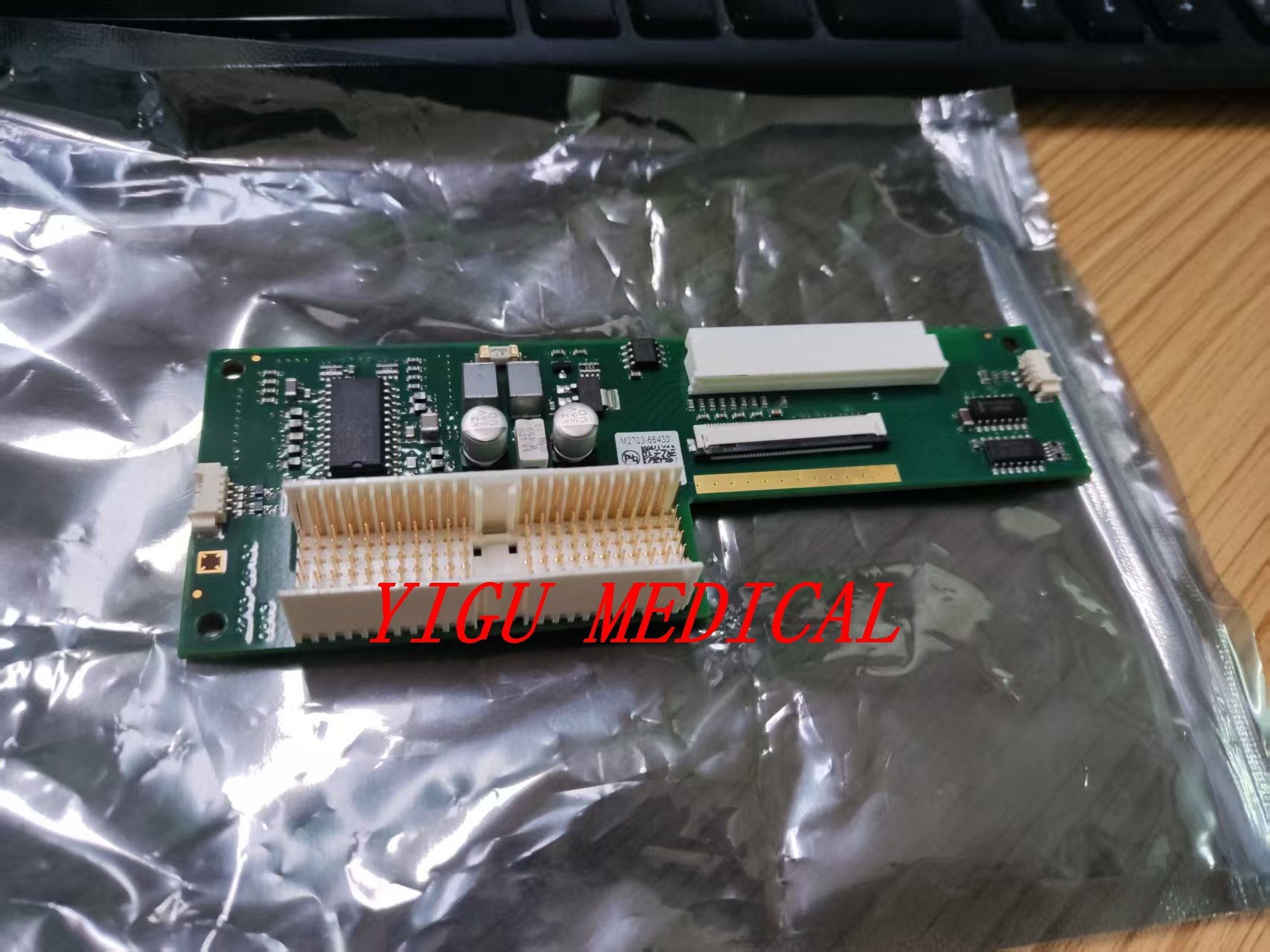

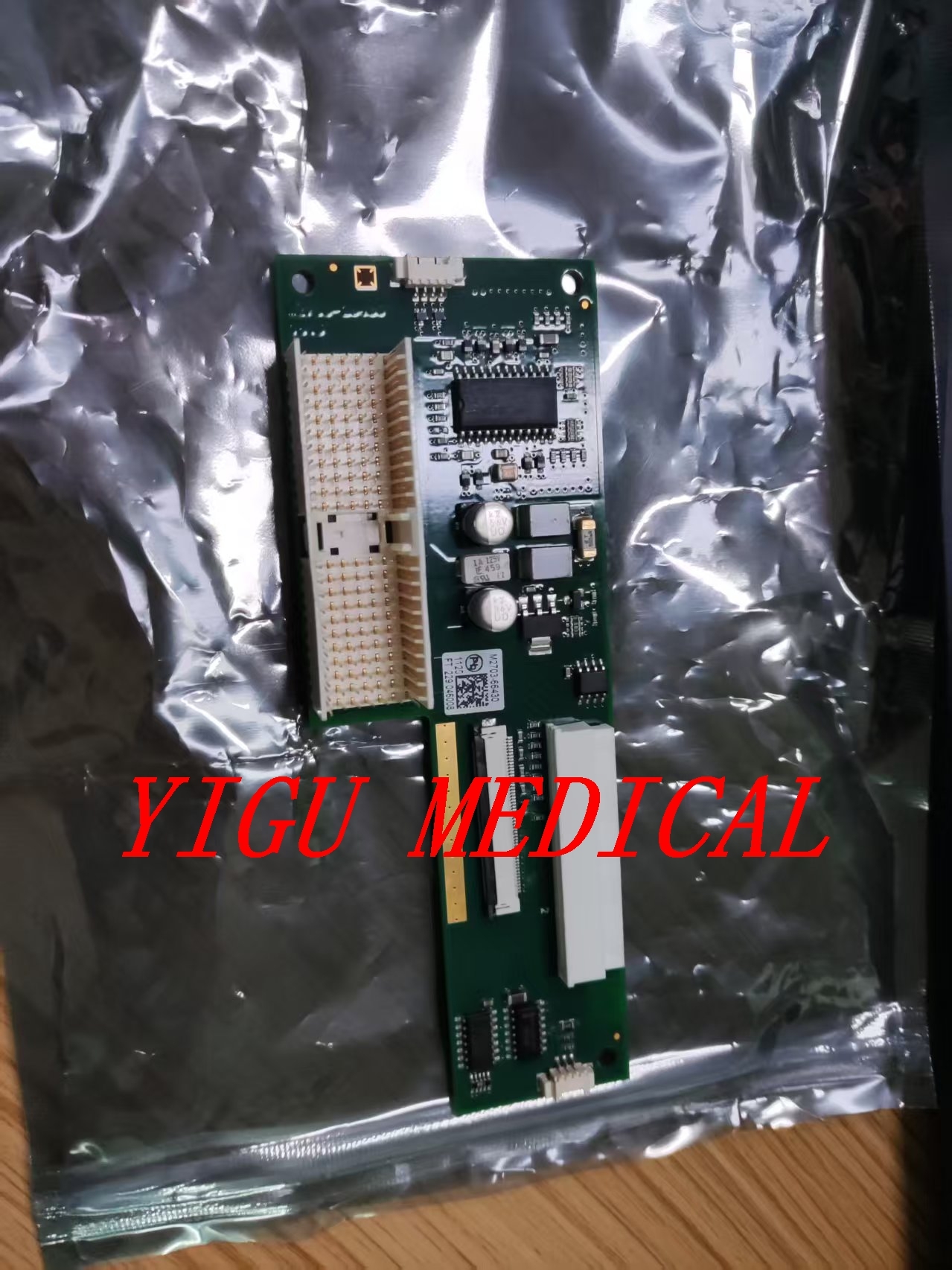

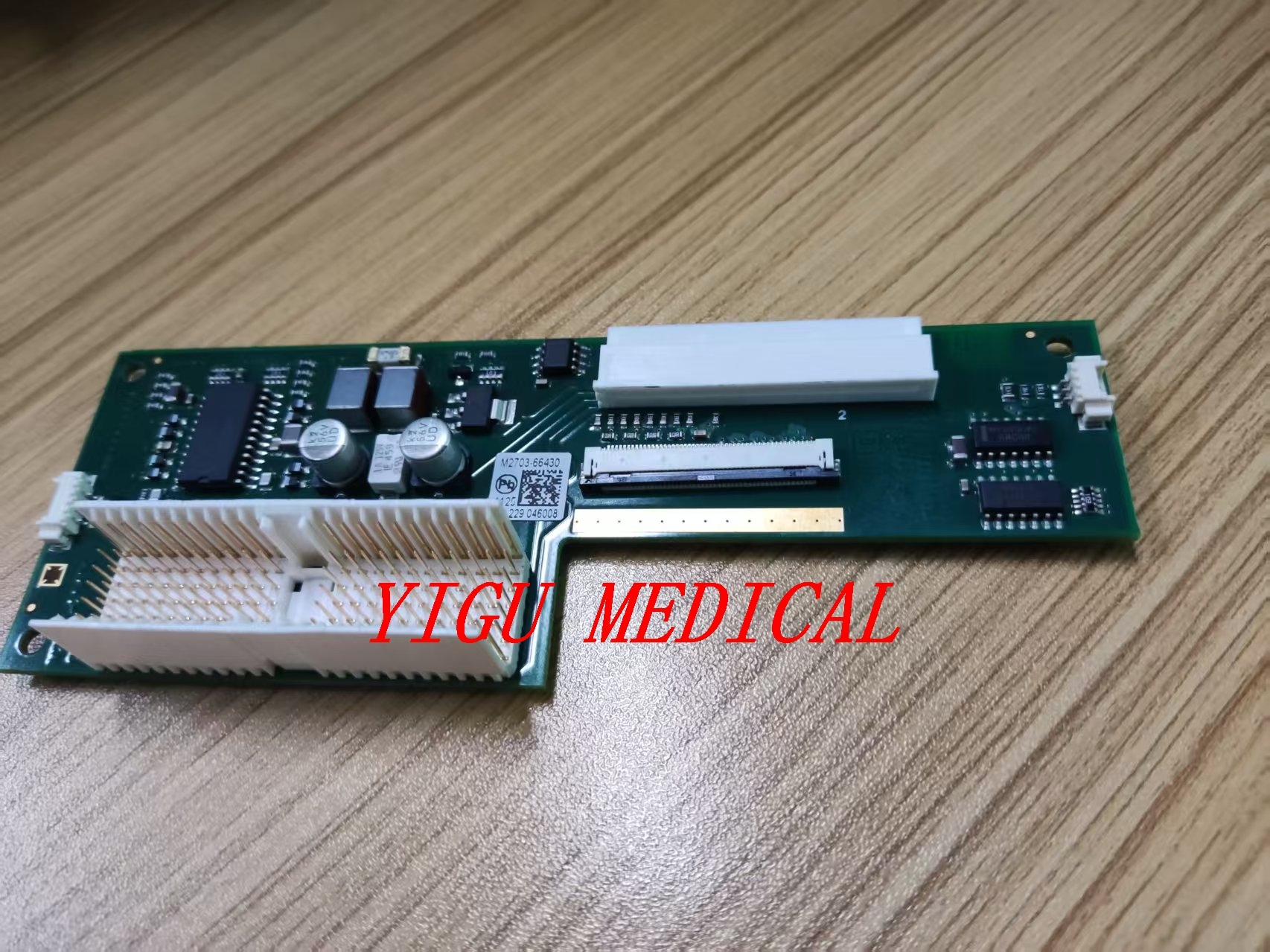

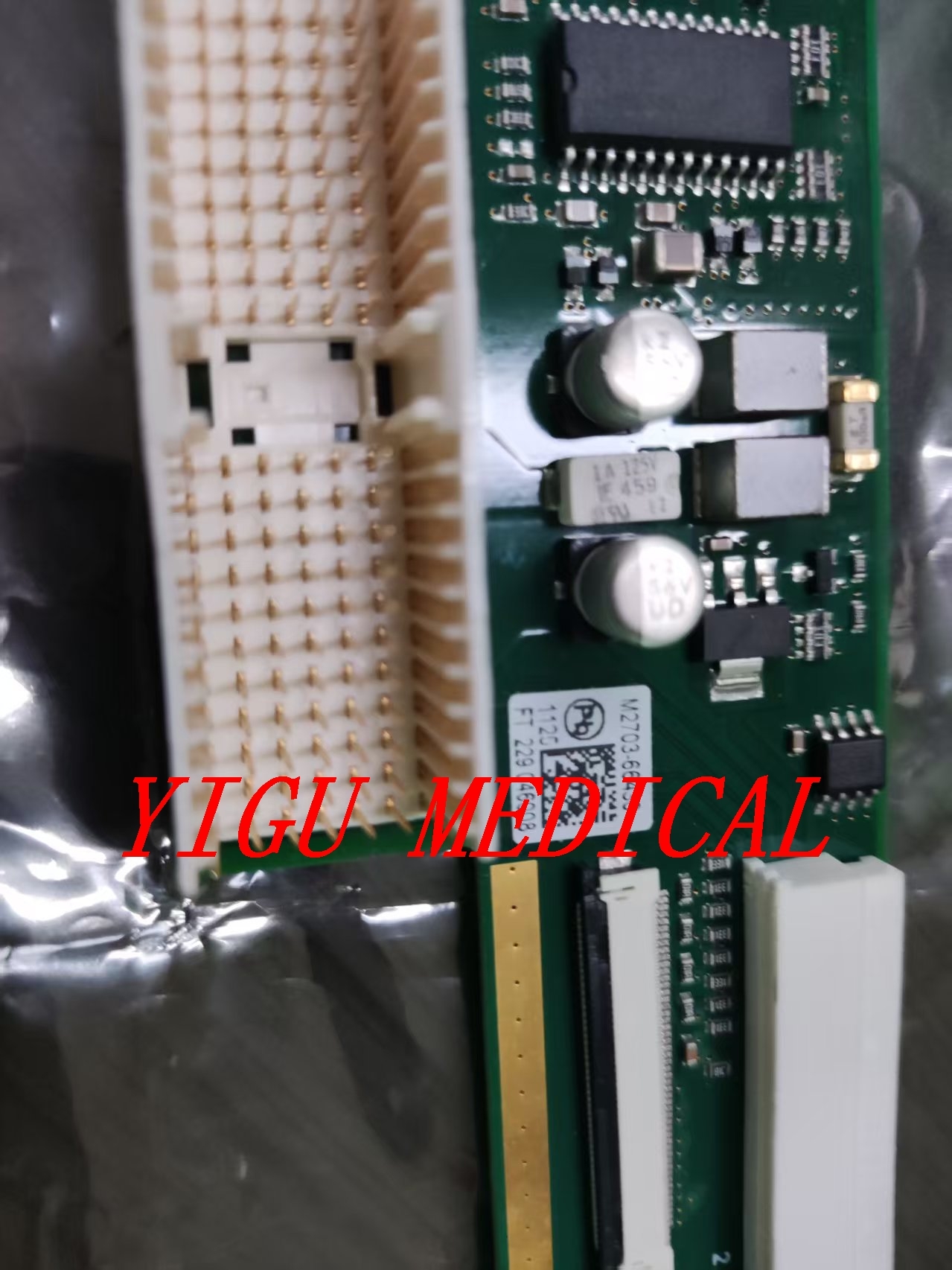

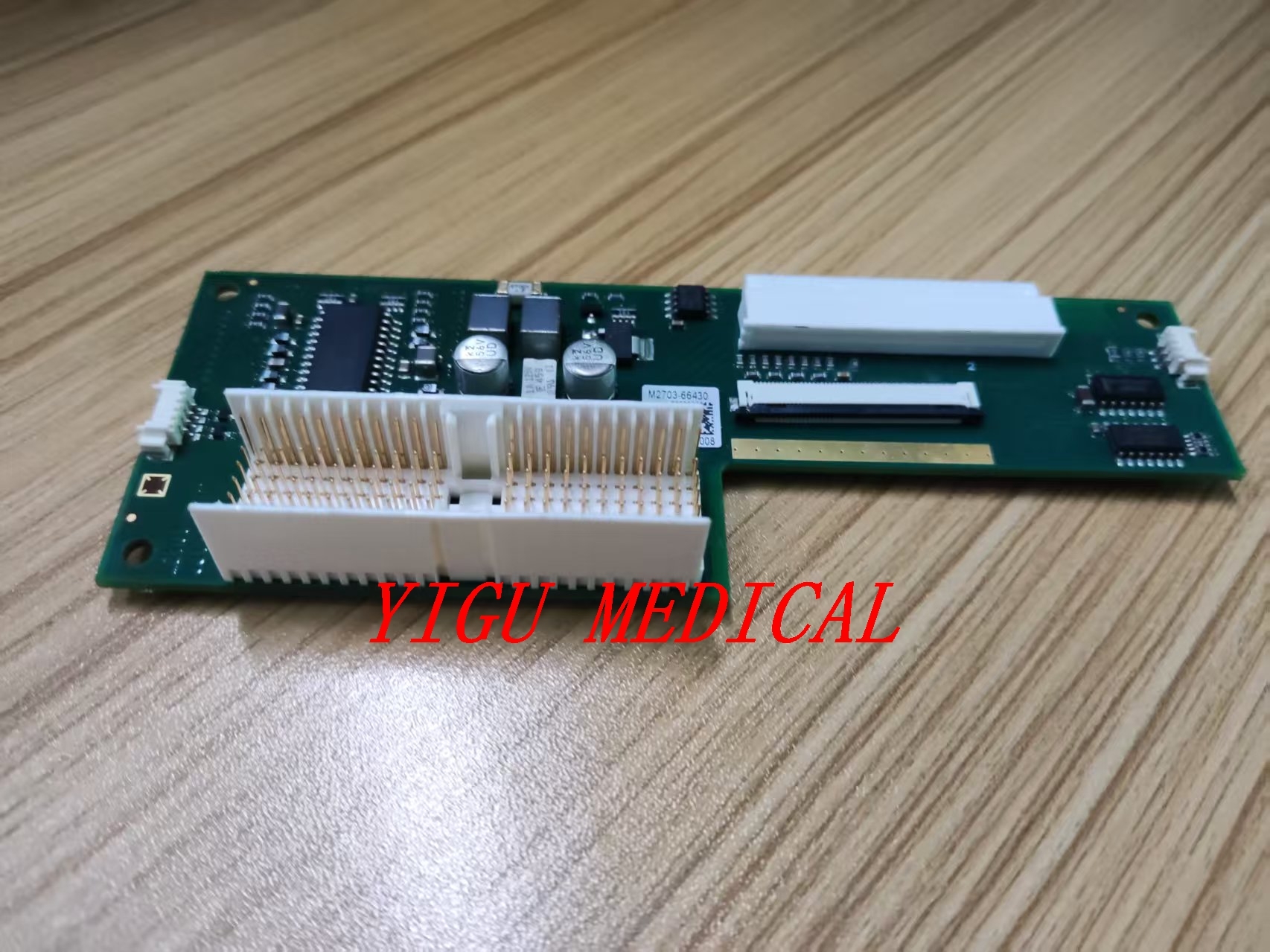

Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition
Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition

Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition

Detail produk:
Nomor model: FM20/FM30
Syarat-syarat pembayaran & pengiriman:
Harga: Bisa dinegosiasikan
Kemasan rincian: Paket Biasa
Waktu pengiriman: 1-2 hari
Syarat-syarat pembayaran: T/T, Western Union, PayPal
Menyediakan kemampuan: 30
Hubungi sekarang
  • Informasi Detail
  • Deskripsi Produk

Informasi Detail
Jumlah: 50 buah Fungsi: Memantau kondisi kesehatan Pasien
dalam stok: Ya Sudut Pandang: kira-kira. 60°
Merek yang Kompatibel: PH Warrenty: 90 hari
Pelatihan pelanggan: Pelatihan Pasca Perbaikan Opsional Ketentuan Pengiriman: DHL, EMS, UPS, ACS dll.
Status: Dalam kondisi baik Metode pengiriman: DHL,UPS,Fedex
Ketersediaan layanan: Di Seluruh Dunia Saham: bekas stok
Suku cadang: Suku Cadang Asli

Deskripsi Produk

Avalon FM20/FM30 Fetal Monitor Drive Board PN M2703-66430 In Good Condition
It is important to clarify that in the context of the Avalon FM20/FM30 fetal monitors, the term "drive board" is generally not an official, singular component name. Instead, the monitor contains several specific printed circuit board assemblies (PCBs) that perform driving or control functions.
Key Circuit Board Components
Main Board (Motherboard)
Part Number M2705-66410 (also listed under 451261009061)
Function Controls all primary monitor operations, including signal processing from the fetal probes (ultrasound, TOCO), maternal vital signs modules, and the overall user interface. This is the core logic board.
Application If the monitor fails to boot, has corrupted graphics, or is unresponsive, this is the primary suspect.
Power Supply Unit (PSU) / Power Board
Part Number Part of the M4605A / M8023A series (External)
Function This is a wide-range switching power supply. It automatically accepts input from 100V to 240V (±10%) at 50/60 Hz and converts it to the necessary DC voltages (primarily 24V output) to run the main board, display, and thermal recorder.
Application Used for "No Power" or "Intermittent Shutdown" issues.
Connector Board (Sensor Interface)
Part Number M2703-26420 / M2703-66420
Function This board acts as the physical interface gateway. It is the board where the fetal sensors (TOCO, Ultrasound) and patient cables plug into the front of the monitor.
Application If specific sensors are not being detected (e.g., "Probe Disconnected" error) but the rest of the monitor works, this board may be faulty.
Touch Panel Controller Board
Part Number M2703-26440
Function This is the closest equivalent to a "Touch Drive Board." It controls the touchscreen overlay. It translates your touch inputs into digital signals for the Main Board.
Application If the display works (shows waveforms/numbers) but the screen does not respond to touch, this specific driver board is likely the issue.
Technical Summary for Repair
  • Power Compatibility: The monitor does not require manual voltage selection; the power supply is auto-sensing.
  • Safety Class: The FM20/30 is a Class II device (double insulated), meaning it does not rely on a protective earth ground for safety, though grounding is required for EMC compliance.
